2SC0435T

Dual-channel SCALE-2+ driver core used by new 2SC0435T2F1-17, 2SC0435T2G1-17, 2SC0435T2H0-17, highest integration level, ultra-compact, high-quality 35 A gate current, and 2 x 4 W output power

過濾器 Filter Products
顯示1 - 6項產品, 共6項
Product Parts
產品
產品規格型錄
IGBT電壓等級
通道數
保形塗層?
支持的模組種類
邏輯輸入電壓
保護功能
技術
接口類型
支持的拓撲
電源電壓 (典型)
柵極導通電壓
柵極關斷電壓
輸出功率/通道 - 最大
柵極峰值電流 (最大)
隔離類型
隔離技術
最大開關頻率
時間 - 輸出下降
時間 - 輸出上升
驅動模式
主/外圍
Options Info
並行支持?
Data Sheet 檢視 PDF
IGBT Voltage Class 1700 V
Number of Channels 2
Conformal Coated? No
Supported Module Type IGBT, N-Channel MOSFET
Logic Input Voltage 5
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2+
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.1 V
Power - Output/Channel (Max) 6.0 W
Gate Peak Current (Max) +35 A
Isolation Type Reinforced
Isolation Technology Galvanic
Max Switching Frequency 100.0 kHz
Time - Output Fall 20 ns
Time - Output Rise 20 ns
Driving Mode Halfbridge, Direct-Independent
Main/Peripheral N/A
Options Info Conformal Coated Version  2SC0435T2F1C-17
Paralleling Support? No
Data Sheet 檢視 PDF
IGBT Voltage Class 1700 V
Number of Channels 2
Conformal Coated? Yes
Supported Module Type IGBT, N-Channel MOSFET
Logic Input Voltage 5
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2+
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.1 V
Power - Output/Channel (Max) 6.0 W
Gate Peak Current (Max) +35 A
Isolation Type Reinforced
Isolation Technology Galvanic
Max Switching Frequency 100.0 kHz
Time - Output Fall 20 ns
Time - Output Rise 20 ns
Driving Mode Halfbridge, Direct-Independent
Main/Peripheral N/A
Paralleling Support? No
Data Sheet 檢視 PDF
IGBT Voltage Class 1700 V
Number of Channels 2
Conformal Coated? No
Supported Module Type IGBT, N-Channel MOSFET
Logic Input Voltage 5
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2+
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.1 V
Power - Output/Channel (Max) 6.0 W
Gate Peak Current (Max) +35 A
Isolation Type Reinforced
Isolation Technology Galvanic
Max Switching Frequency 100.0 kHz
Time - Output Fall 20 ns
Time - Output Rise 20 ns
Driving Mode Halfbridge, Direct-Independent
Main/Peripheral N/A
Paralleling Support? No
Data Sheet 檢視 PDF
IGBT Voltage Class 1700 V
Number of Channels 2
Conformal Coated? Yes
Supported Module Type IGBT, N-Channel MOSFET
Logic Input Voltage 5
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2+
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.1 V
Power - Output/Channel (Max) 6.0 W
Gate Peak Current (Max) +35 A
Isolation Type Reinforced
Isolation Technology Galvanic
Max Switching Frequency 100.0 kHz
Time - Output Fall 20 ns
Time - Output Rise 20 ns
Driving Mode Halfbridge, Direct-Independent
Main/Peripheral N/A
Paralleling Support? No
Data Sheet 檢視 PDF
IGBT Voltage Class 1700 V
Number of Channels 2
Conformal Coated? No
Supported Module Type IGBT, N-Channel MOSFET
Logic Input Voltage 5
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2+
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.1 V
Power - Output/Channel (Max) 6.0 W
Gate Peak Current (Max) +35 A
Isolation Type Reinforced
Isolation Technology Galvanic
Max Switching Frequency 100.0 kHz
Time - Output Fall 20 ns
Time - Output Rise 20 ns
Driving Mode Halfbridge, Direct-Independent
Main/Peripheral N/A
Options Info Conformal Coated Version  2SC0435T2H0C-17
Paralleling Support? No
Data Sheet 檢視 PDF
IGBT Voltage Class 1700 V
Number of Channels 2
Conformal Coated? Yes
Supported Module Type IGBT, N-Channel MOSFET
Logic Input Voltage 5
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2+
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.1 V
Power - Output/Channel (Max) 6.0 W
Gate Peak Current (Max) +35 A
Isolation Type Reinforced
Isolation Technology Galvanic
Max Switching Frequency 100.0 kHz
Time - Output Fall 20 ns
Time - Output Rise 20 ns
Driving Mode Halfbridge, Direct-Independent
Main/Peripheral N/A
Paralleling Support? No

2SC0435T is a SCALE-2 dual-driver core that combines compact design and high reliability with broad applicability. The 2SC0435T drives all common IGBT modules up to 3600 A  / 1700 V. Embedded-paralleling allows simple inverter design even at higher power ratings. Multi-level topologies are also supported

Advantages of the Technology

The 2SC0435T is one of the most compact driver core available for industrial applications, with a footprint of only 57.2 x 51.6 mm and profile of 20 mm. The SCALE-2+ chipset reduces the component count by up to 85% compared to conventional solutions, thus significantly increasing reliability and reducing costs.

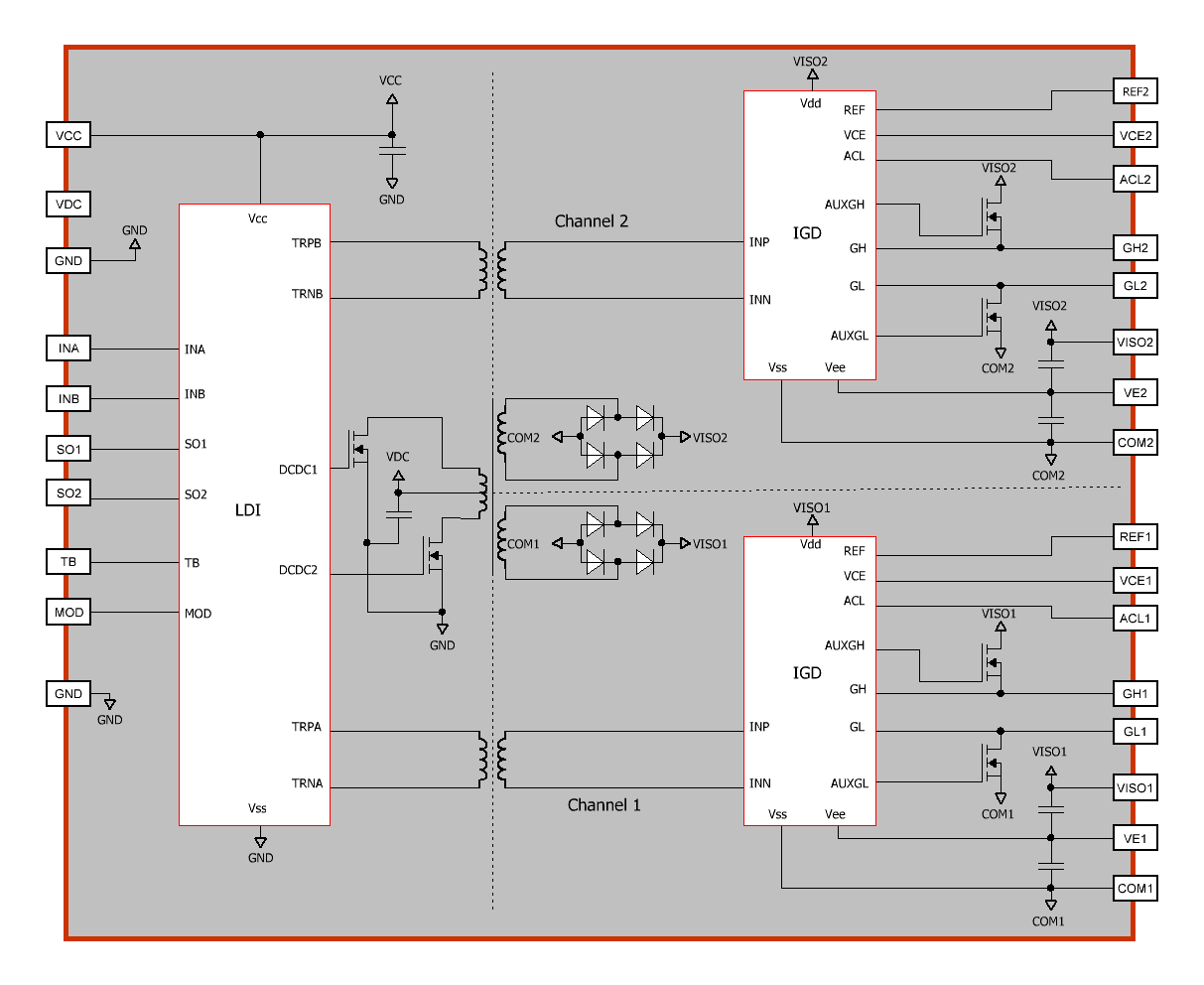

The 2SC0435T combines a complete two-channel driver core with all components required for driving, including: isolated DC/DC converter; short-circuit protection; as well as supply voltage monitoring. Each of the two output channels is electrically-isolated from the primary side and the other secondary channel.

IGBT Mode

An output current of 35 A and 4 W drive power is available per channel, making the 2SC0435T a suitable driver choice for both high-power modules and parallel-connected IGBT modules. In dedicated IGBT mode, the driver provides a gate voltage swing of +15 V / –10V. The turn-on voltage is regulated to maintain a stable 15 V regardless of the output power level.

Excellent EMC performance allows safe and reliable operation in even harsh industrial environments. The 2SC0435T is suited for high-power IGBTs with blocking voltages up to 1700 V.

MOSFET Mode

A dedicated MOSFET mode is implemented in the 2SC0435T. It allows any gate voltage swing of +10 V…+20 V / 0 V to make the most of the driver’s 100 kHz switching speed.

With its high output power, very short delay, and extremely small jitter, the 2SC0435T driver core has been specifically designed for high-power and ultra-fast switching, fully exploiting the capabilities of state-of-the-art MOS power devices.

Driving Parallel-Connected IGBTs

The driver allows direct parallel connection of any number of IGBT modules with individual drivers. This new, pioneering concept makes it practical for the first time to build converter series with discrete modules as well as parallel-connected IGBTs without any significant additional development effort.

The 2SC0435T drives all common high-power IGBT modules up to 1700V. It offers broad applicability thanks to its compactness and cost effectiveness, especially for solar/wind applications. This product is available with Conformal Coating.

  • SCALE-2+ chip set
  • Available with Conformal Coating
  • New Pin length for 2mm PCB's (2.54mm; 3.1mm; 5.84mm)
  • New pins for hand-, wave-and selective soldering processes
  • All lead free
  • All with EMC improved technology
  • 100% downward compatible
  • Blocking voltages up to 1700V
  • Switching frequency up to 100kHz
  • Very short delay time of <100ns
  • Small jitter of ±3ns
  • Gate current ±35A
  • +15V (regulated)/-10V gate driving
  • Interface for 3.3V...15V logic level
  • Direct and half-bridge modes
  • Embedded paralleling capability
  • 2-level and multilevel topologies
  • IGBT short-circuit protection
  • Advanced Active Clamping
  • Isolated DC/DC converter
  • 2 x 4W output power
  • Supply under-voltage lockout
  • Safe isolation to EN50178
  • UL Recognized Component
  • RoHS versions available
  • Superior EMC
  • Reliable, long service life
  • Footprint: 57.2mm x 51.6mm
  • No change in electrical and mechanical performance
