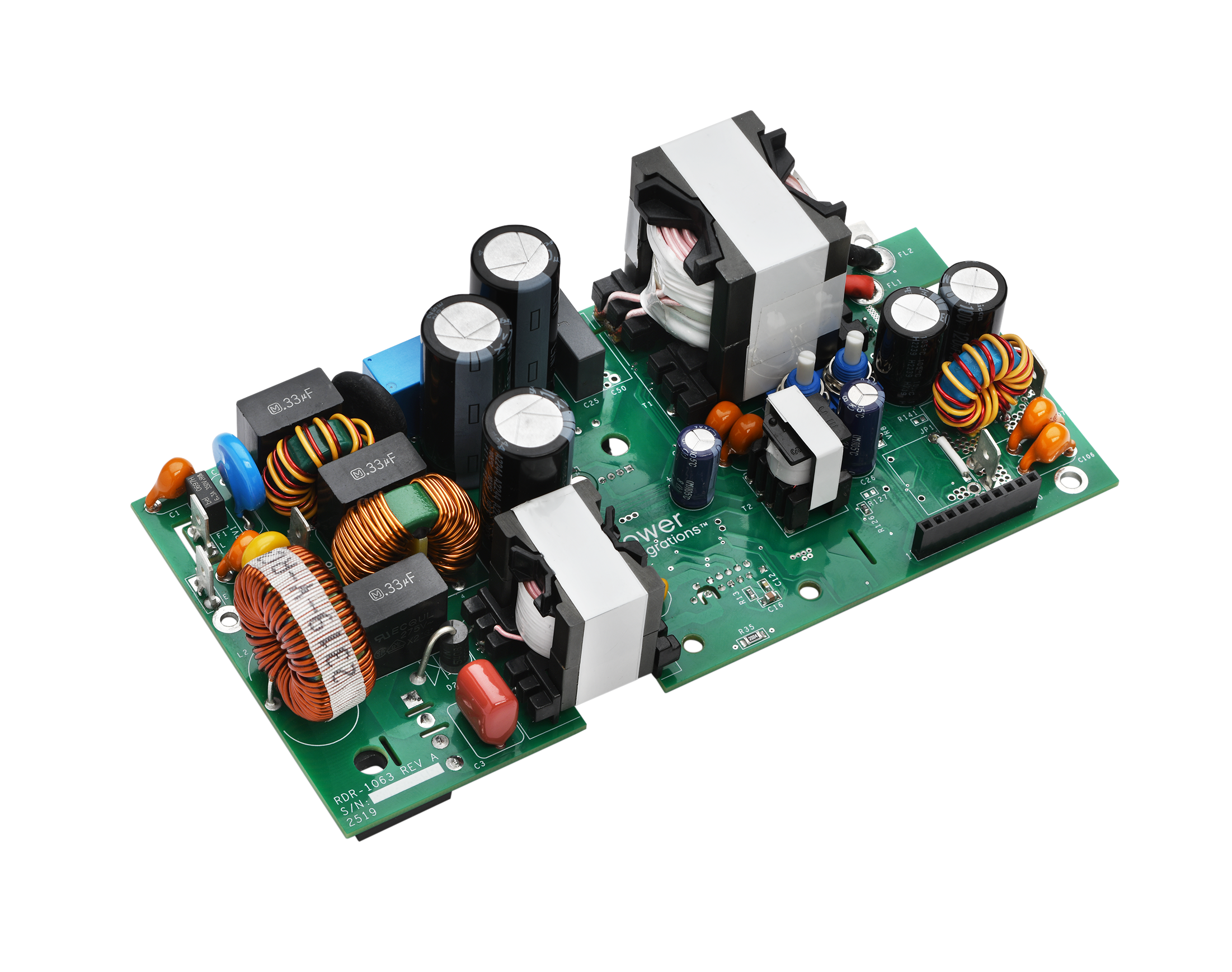

RDK-1063 - 720 W Compact LLC Power Supply with CV and CC Mode Control Using HiperLCS-2 Chipset and HiperPFS-3 for PFC
720 W LLC power supply optimized for compact chargers for EV two-wheelers and power tools
應用
產品規格
設計類型
Reference Design Reports (RDR)
拓撲結構
Boost PFC + LLC
Vout 1
60.00 V
Vin (min)
170
Vin (max)
280
P (NoLoad)
1500.00 mW
恆壓/恆流
CV/CC
Efficiency
94.80%
隔離式？
Yes
Number of outputs
1
輸出功率
720.00 W
OVP?
Yes
PFC?
Yes
Associated Parts
LCS7268Z, LSR2000C-H005, PFS7539L, CAP300DG, INN3692C-H606
