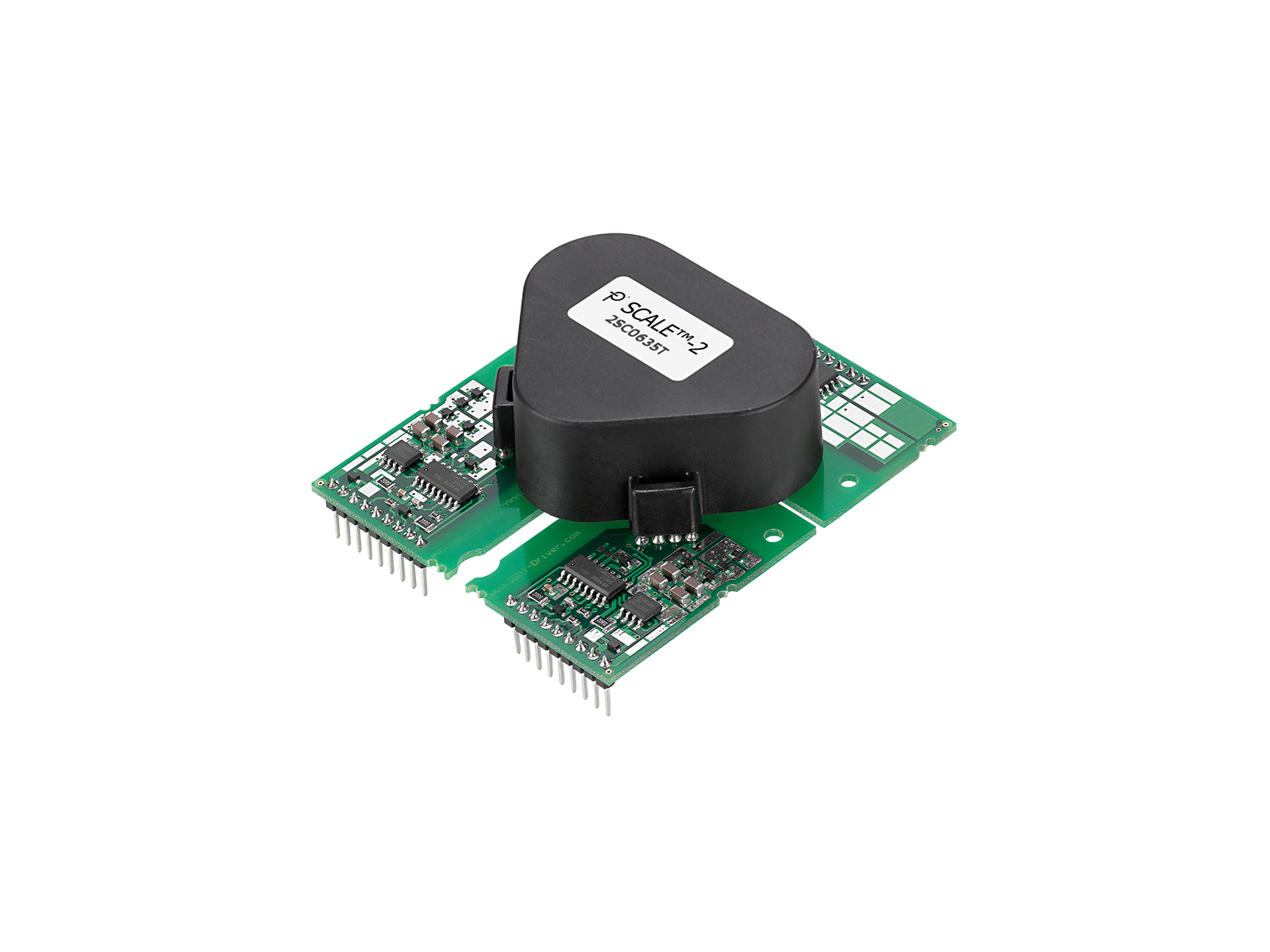

2SC0635T2A1-45

Dual-Channel SCALE-2 Driver Core for 4.5 kV IGBTs, highest integration level, low system costs, with electrical signal interface and on-board power supply

Applications
Product Details

The 2SC0635T is the first commercially-available dual-channel IGBT gate driver core for 4.5 kV IGBT with electrical interface and integrated DC/DC converter. This gate driver unit provides functional isolation according to IEC 61800-5-1 and UL-347 and is a cost effective and reliable alternative to more expensive fiber-optic solutions. The core functionality integrates essential control and protection features while maintaining full design flexibility with regard to protection, interfacing and the partitioning of the power inverter. Targeted at applications including medium voltage inverters for traction and industrial applications.

Specifications
Max Switching Frequency 100.00 kHz
IGBT Voltage Class 4500 V
Technology SCALE-2
Power - Output/Channel (Max) 9.00 W
Interface Type Electrical
Number of Channels 2
Gate Peak Current (Max) +35 A
Product Type Board
Product Sub-Type Driver Core
Supported Module Type IGBT
Main/Peripheral N/A
Supported Topologies 2-level Voltage Source 3-level NP-Clamped - Type 1 3-level NP-Clamped - Type 2 Multi-Level NP-Clamped
Protection Features Adv Active Clamping Short Circuit UVLO(Sec-side) UVLO(Pri-side)
Driving Mode Halfbridge Direct-Independent
Logic Input Voltage 15
Supply Voltage (Typ) 15.00 V
Gate Turn-on Voltage +15.00 V
Gate Turn-off Voltage --10.80 V
Time - Output Rise 20.00 ns
Time - Output Fall 25.00 ns
Isolation Technology Galvanic
Isolation Type Basic
Gate Peak Current (Min) -35
