2SMS0220D2C0C-CM1200DC-34X
Gate Driver for 1700 V Half-Bridge Power Modules
제품 상세 정보

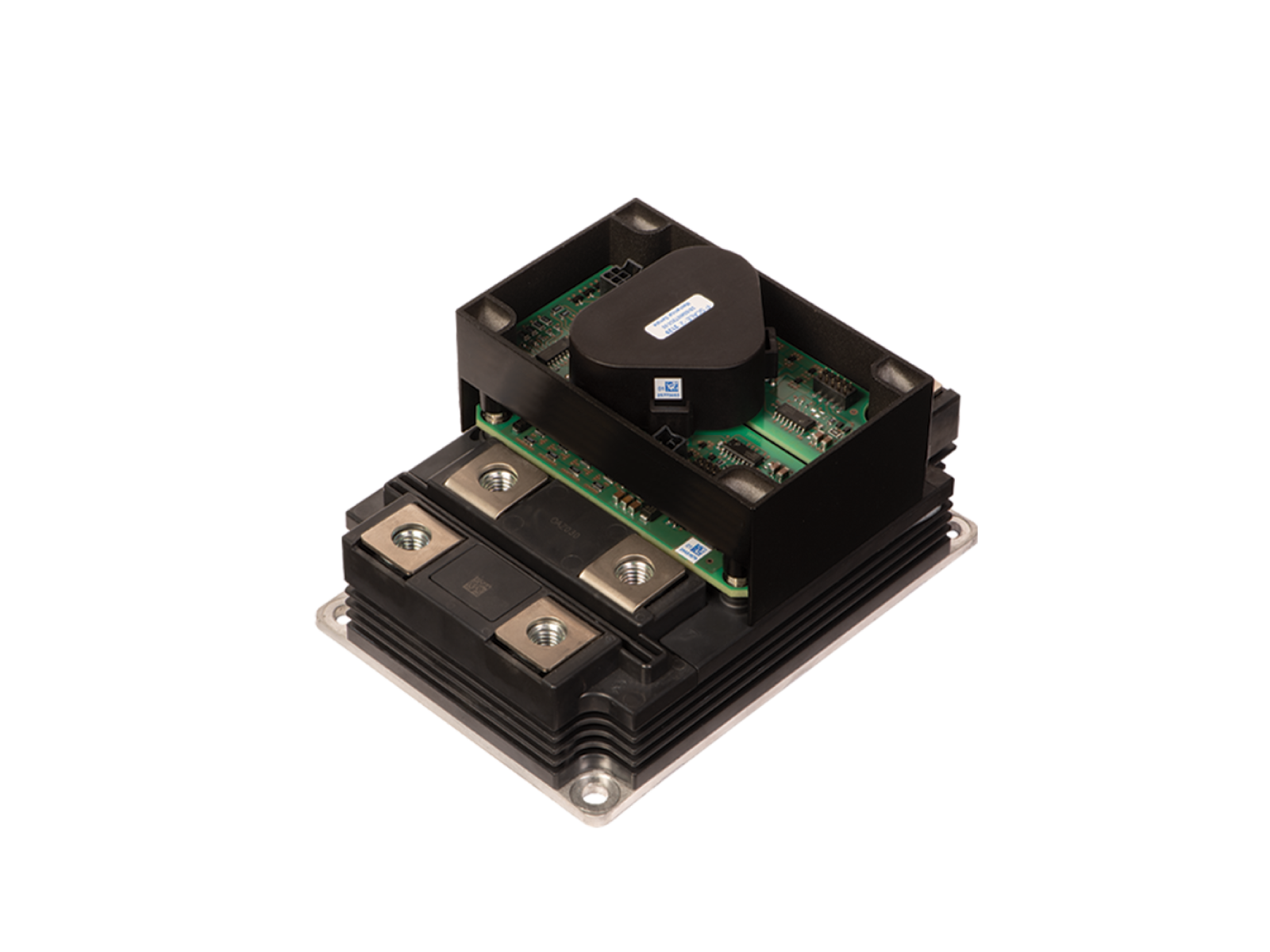

SCALE-iFlex Single are gate-drivers for “New Dual” 100 mm x 140 mm IGBT/SiC modules. Each consists of an Isolated Master Control (IMC), and a Module Adapted Gate Driver (MAG). The IMC is designed for operation of power modules with a blocking voltage of up to 3300 V, whereas the MAGs are available in variants optimized for different power modules, suppliers and chip technologies in the voltage classes up to 3300 V.
SCALE-iFlex Single are gate-drivers for “New Dual” 100 mm x 140 mm IGBT/SiC modules. Each consists of an Isolated Master Control (IMC), and a Module Adapted Gate Driver (MAG). The IMC is designed for operation of power modules with a blocking voltage of up to 3300 V, whereas the MAGs are available in variants optimized for different power modules, suppliers and chip technologies in the voltage classes up to 3300 V.
Highly Integrated, Compact Footprint
- Ready-to-use gate driver solution for power modules up to 1700 V blocking voltage
- Optimized for Mitsubishi’s Half-Bridge Power Modules (e.g., CM1200DC-34X)
- -40 °C to +85 °C operating ambient temperature
Protection / Safety Features
- Undervoltage lock-out (UVLO)
- Overvoltage protection by Advanced Active Clamping (AAC)
- Short circuit protection
- Applied double sided conformal coating
Full Safety and Regulatory Compliance
- 100% production partial discharge and HIPOT test of transformer
- Clearance and creepage distances between primary and secondary sides meet requirements for reinforced isolation
- RoHS compliant
명세서
지원되는 모듈 | CM1200DC-34X |
IGBT 전압 등급 | 1700 V |
기술 | SCALE-2 |
상품 유형 | Plug-and-Play Driver |
작동 온도 (최소) | -40 ℃ |
작동 온도 (최대) | 85 ℃ |
인터페이스 유형 | Electrical |
모듈 하우징 | 100x140mm |
IGBT 제조업체 | Mitsubishi |
채널 수 | 2 |
상품 유형 | Board |
Product Sub-Type | PnP Driver |
지원되는 모듈 유형 | Silicon Carbide |
지원되는 토폴로지 |
2-level Voltage Source
3-level NP-Clamped - Type 1
|
보호 기능 |
Adv Active Clamping
Over-voltage
Short Circuit
UVLO(Sec-side)
|
등각 코팅? | Yes |
드라이브 모드 |
Halfbridge
Direct-Independent
|
IGBT에 대한 연결 유형 | Direct |
공급 전압 (일반) | 15.00 V |
게이트 턴온 전압 | +15.00 V |
게이트 턴 오프 전압 | --10.00 V |
격리 유형 | Basic |
보관 온도 (최소) (°C) | -40.00 ℃ |
보관 온도 (최대) (°C) | 50.00 ℃ |
