InnoSwitch-CE - High Frequency Ripple on DC Output - 5V 15W SMPS
Posted by: HimanshuRai84
on
Hi,

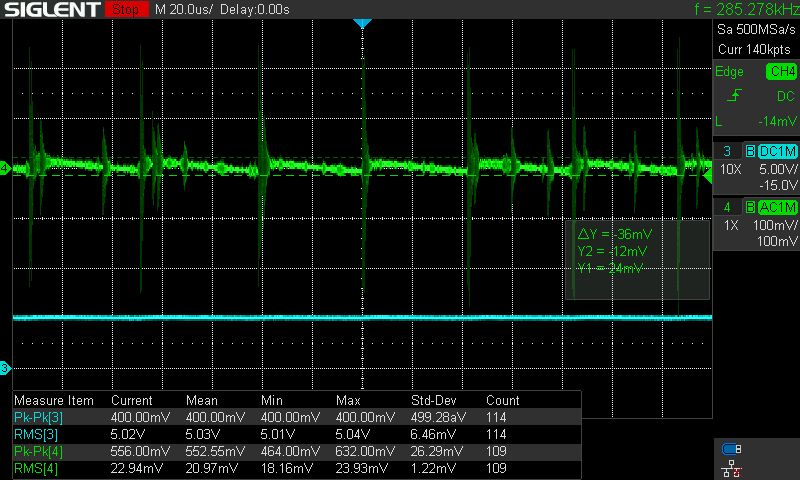

I am designing a 15W 5V SMPS Board for a universal line voltage input (85V-265V). Most of the design works well but I am seeing a lot of High-Frequency Ripple on the Output of the SMPS PCB. See the attached Schematic and Waveforms for the measurements and design.
Please can someone review and advise what I could do to reduce / eliminate this HF Ripple component from the DC output? It increases in amplitude with increase in Line Voltage input at the maximum power output level (3A / 15W).
Files
Schematic for Design
(217.37 KB)
(86.48 KB)
(89.27 KB)
(86.83 KB)
(84.69 KB)
(83.99 KB)
Hi HimanshuRai84,
Thank you for using Power Integrations products.
It is possible that the HF spikes you see on the ripple waveform are noise pick-up by the oscilloscope probe. The spikes you showed are in-sync with SRFET switching events and as VIN increases, SRFET VDS also increases.
Are you using a probe with short connection, preferably with a BNC adapter? https://probemaster.com/4987ba-bnc-adapter/
Long wires for the probe are prone to noise pick-up.
Also, can you check if a ceramic capacitor directly at the output terminal helps to reduce the noise?
It appears you have a provision in schematic (C19) but it displays not populated.
Regards,
PI-Spark
