TOPSWITCH 265EG Vpin Problem
Hello All,
i have designed the circuit as per the PI-EXPERT Software.
The circuit is working at no load giving Clean output of 27V
But when i am trying to Load say about 100mA, output voltage gets fluctuated continuously and it is not stable.
After Various trial and error, When i pulled down vpin to GND iT WORKED..!!
Now but the circuit is starting very small voltage and i want it to turn on at the 90VAC
Schematics is attached with the post.
I have tried the resistors till 3 mOHM From 4 mOHM but it is not working.
Pls guide where is the problem and how to avoid..??
Regards
Chiku
댓글
Hi,
I have not connected the R12,D4 and VR2 (Overvoltage Protection)
Also X PIN in connected to GND (Disable the Fuction of Current Limit)
But When i am connecting the Vpin with 4 mOHM Resistor with high DC, at no load it gives output but After Putting a 100mA OF Load power supply output voltage oscilates.
When i am connecting HVDC GND to the V pin , it works..
Confused

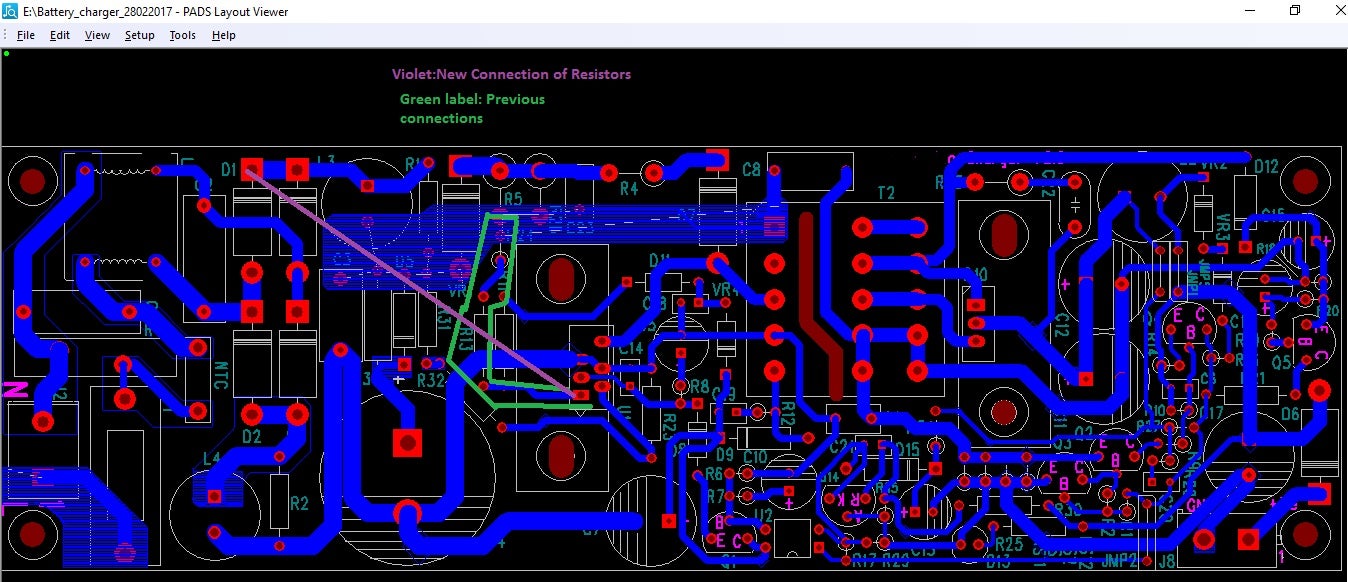

here i am attaching the Layout.
| 첨부 파일 | 파일 크기 |
|---|---|
| Layout_smps.jpg (346.89 KB) | 346.89 KB |
Hi magicianchiku,
I can't figure out much the layout but it seems there is other ckt connected to Vpin causing impedance variation and trigger UV fault? Do you have additional bjt switch on V pin to control the enable disable function of Vpin? Thanks.
Hi Chiku,
Thank you for your interest of using power integrations part.
