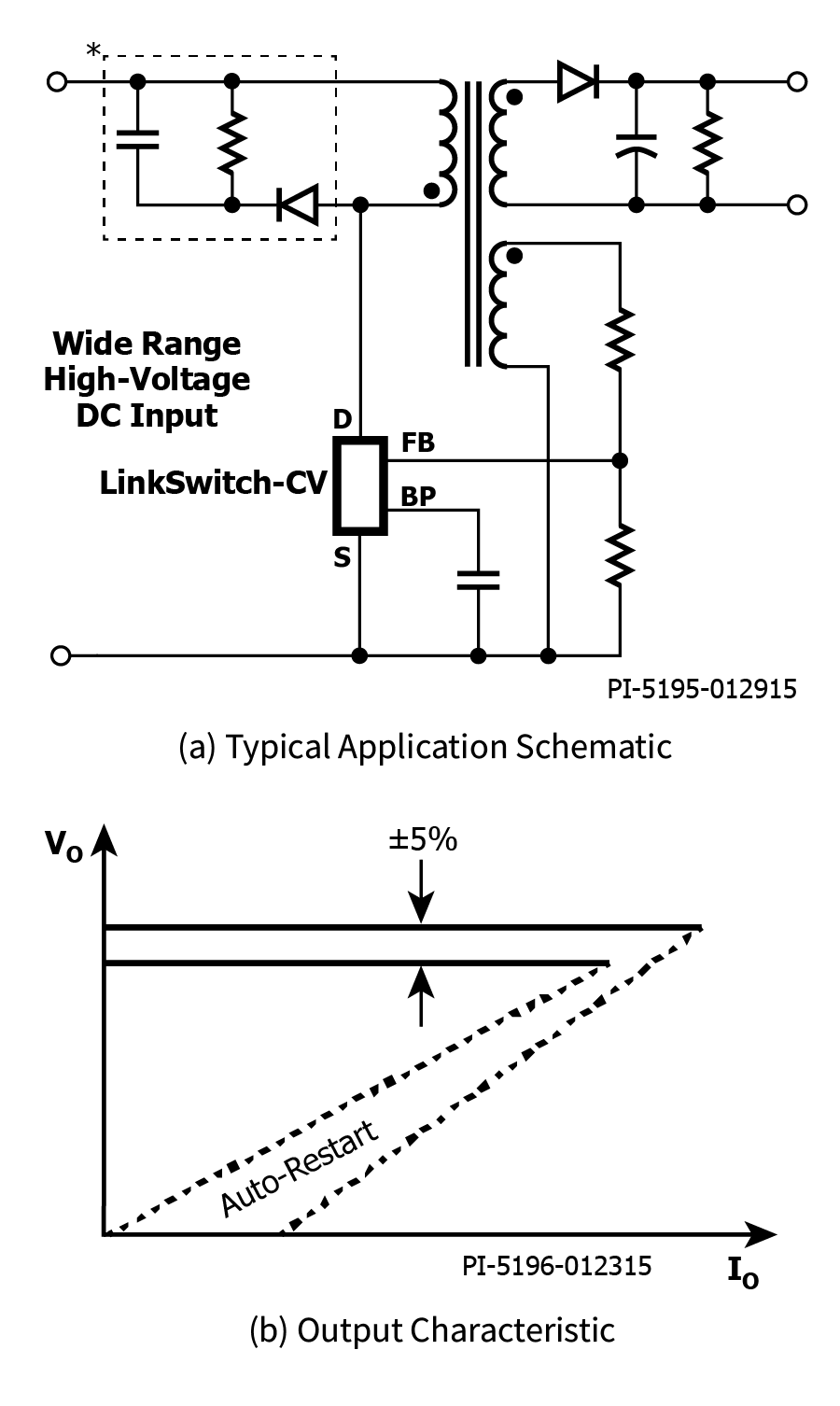

![一般應用/效能 - 非簡化電路 (a) 及輸出特性波包 (b)。](/sites/default/files/styles/product_image/public/images/schematics/linkswitchcv_schematic_3.png?itok=OizNpQf0)
![LinkSwitch-CV-SO-8C](/sites/default/files/styles/product_image/public/images/products/PI-1600x1200%402x_LinkSwitch-CV-SO-8C.png?itok=aVOGxTET)
![LinkSwitch-CV in PDIP-8C Package LinkSwitch-CV in PDIP-8C Package](/sites/default/files/styles/product_image/public/images/products/PI-1600x1200%402x_LinkSwitch-CV%20PDIP-8C.png?itok=CIe5QGCD)
![一般應用/效能 - 非簡化電路 (a) 及輸出特性波包 (b)。](/sites/default/files/styles/teaser_thumb/public/images/schematics/linkswitchcv_schematic_3.png?itok=enN8X9xl)
![LinkSwitch-CV-SO-8C](/sites/default/files/styles/teaser_thumb/public/images/products/PI-1600x1200%402x_LinkSwitch-CV-SO-8C.png?itok=CbGgsXBL)
![LinkSwitch-CV in PDIP-8C Package LinkSwitch-CV in PDIP-8C Package](/sites/default/files/styles/teaser_thumb/public/images/products/PI-1600x1200%402x_LinkSwitch-CV%20PDIP-8C.png?itok=oJdS5KIK)
LinkSwitch-CV
藉由排除使用光耦合器及二次側控制電路,大幅簡化了低功率電源供應器設計
應用
產品
|
產品
|
產品規格型錄
|
輸出功率 (最大) - 封閉式, 230V
|
輸出功率 (最大) - 敞開式, 230V
|
輸入電壓 (最小)
|
輸入電壓 (最大)
|
IC封裝
|
輸出功率 (最大) - 封閉式, 通用
|
輸出功率 (最大) - 敞開式, 通用
|
擊穿電壓
|
輸出配置
|
拓撲結構
|
控制功能
|
保護功能
|
安裝類型
|
產品類別
|
運作溫度 (最大)
|
運作溫度 (最小)
|
控制方式
|
內部開關
|
過熱反應
|
次級回應
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Data Sheet
View Data Sheet
|
Output Power (Max) - Enclosed, 230V
6.5 W
|
Output Power (Max) - Open Frame, 230V
9.0 W
|
Voltage - Input (Min)
85 V
|
Voltage - Input (Max)
265 V
|
IC Package
SO-8C
|
Output Power (Max) - Enclosed, Univ
5.0 W
|
Output Power (Max) - Open Frame, Univ
6.0 W
|
Breakdown Voltage
725 V
|
Output Profile
CV
|
Topology
Flyback, Tapped Buck
|
Control Features
Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Protection Features
Overtemperature, Output Short Circuit, Output Open Loop
|
Mounting Type
Surface Mount
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Control Scheme
Primary-side
|
Internal Switch
Yes
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
||
Data Sheet
View Data Sheet
|
Output Power (Max) - Enclosed, 230V
6.5 W
|
Output Power (Max) - Open Frame, 230V
9.0 W
|
Voltage - Input (Min)
85 V
|
Voltage - Input (Max)
265 V
|
IC Package
PDIP-8C
|
Output Power (Max) - Enclosed, Univ
5.0 W
|
Output Power (Max) - Open Frame, Univ
6.0 W
|
Breakdown Voltage
725 V
|
Output Profile
CV
|
Topology
Flyback, Tapped Buck
|
Control Features
Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Protection Features
Overtemperature, Output Short Circuit, Output Open Loop
|
Mounting Type
Through Hole
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Control Scheme
Primary-side
|
Internal Switch
Yes
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
||
Data Sheet
View Data Sheet
|
Output Power (Max) - Enclosed, 230V
7.0 W
|
Output Power (Max) - Open Frame, 230V
11.0 W
|
Voltage - Input (Min)
85 V
|
Voltage - Input (Max)
265 V
|
IC Package
SO-8C
|
Output Power (Max) - Enclosed, Univ
5.5 W
|
Output Power (Max) - Open Frame, Univ
6.5 W
|
Breakdown Voltage
725 V
|
Output Profile
CV
|
Topology
Flyback, Tapped Buck
|
Control Features
Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Protection Features
Overtemperature, Output Short Circuit, Output Open Loop
|
Mounting Type
Surface Mount
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Control Scheme
Primary-side
|
Internal Switch
Yes
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
||
Data Sheet
View Data Sheet
|
Output Power (Max) - Enclosed, 230V
7.0 W
|
Output Power (Max) - Open Frame, 230V
11.0 W
|
Voltage - Input (Min)
85 V
|
Voltage - Input (Max)
265 V
|
IC Package
PDIP-8C
|
Output Power (Max) - Enclosed, Univ
5.5 W
|
Output Power (Max) - Open Frame, Univ
6.5 W
|
Breakdown Voltage
725 V
|
Output Profile
CV
|
Topology
Flyback, Tapped Buck
|
Control Features
Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Protection Features
Overtemperature, Output Short Circuit, Output Open Loop
|
Mounting Type
Through Hole
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Control Scheme
Primary-side
|
Internal Switch
Yes
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
||
Data Sheet
View Data Sheet
|
Output Power (Max) - Enclosed, 230V
8.0 W
|
Output Power (Max) - Open Frame, 230V
13.5 W
|
Voltage - Input (Min)
85 V
|
Voltage - Input (Max)
265 V
|
IC Package
SO-8C
|
Output Power (Max) - Enclosed, Univ
6.5 W
|
Output Power (Max) - Open Frame, Univ
8.0 W
|
Breakdown Voltage
725 V
|
Output Profile
CV
|
Topology
Flyback, Tapped Buck
|
Control Features
Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Protection Features
Overtemperature, Output Short Circuit, Output Open Loop
|
Mounting Type
Surface Mount
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Control Scheme
Primary-side
|
Internal Switch
Yes
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
||
Data Sheet
View Data Sheet
|
Output Power (Max) - Enclosed, 230V
8.0 W
|
Output Power (Max) - Open Frame, 230V
13.5 W
|
Voltage - Input (Min)
85 V
|
Voltage - Input (Max)
265 V
|
IC Package
PDIP-8C
|
Output Power (Max) - Enclosed, Univ
6.5 W
|
Output Power (Max) - Open Frame, Univ
8.0 W
|
Breakdown Voltage
725 V
|
Output Profile
CV
|
Topology
Flyback, Tapped Buck
|
Control Features
Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Protection Features
Overtemperature, Output Short Circuit, Output Open Loop
|
Mounting Type
Through Hole
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Control Scheme
Primary-side
|
Internal Switch
Yes
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
||
Data Sheet
View Data Sheet
|
Output Power (Max) - Enclosed, 230V
10.5 W
|
Output Power (Max) - Open Frame, 230V
17.0 W
|
Voltage - Input (Min)
85 V
|
Voltage - Input (Max)
265 V
|
IC Package
SO-8C
|
Output Power (Max) - Enclosed, Univ
8.5 W
|
Output Power (Max) - Open Frame, Univ
10.0 W
|
Breakdown Voltage
725 V
|
Output Profile
CV
|
Topology
Flyback, Tapped Buck
|
Control Features
Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Protection Features
Overtemperature, Output Short Circuit, Output Open Loop
|
Mounting Type
Surface Mount
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Control Scheme
Primary-side
|
Internal Switch
Yes
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
||
Data Sheet
View Data Sheet
|
Output Power (Max) - Enclosed, 230V
10.5 W
|
Output Power (Max) - Open Frame, 230V
17.0 W
|
Voltage - Input (Min)
85 V
|
Voltage - Input (Max)
265 V
|
IC Package
PDIP-8C
|
Output Power (Max) - Enclosed, Univ
8.5 W
|
Output Power (Max) - Open Frame, Univ
10.0 W
|
Breakdown Voltage
725 V
|
Output Profile
CV
|
Topology
Flyback, Tapped Buck
|
Control Features
Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Protection Features
Overtemperature, Output Short Circuit, Output Open Loop
|
Mounting Type
Through Hole
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Control Scheme
Primary-side
|
Internal Switch
Yes
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
LinkSwitch-CV 藉由免除光耦合器及二次側控制電路,大幅簡化了有嚴格 CV 要求之 CV 電源供應器的設計。本裝置採用革新的控制技術,能根據輸入電壓與溫度的變異提供非常精確的輸出電壓調節。
本裝置將一個 725 V 功率 MOSFET、新穎的開/關控制狀態機、用於自偏壓的高電壓切換電流源、頻率抖動、逐週期電流限制與遲滯過熱關機電路全部整合到單晶片 IC 中。
