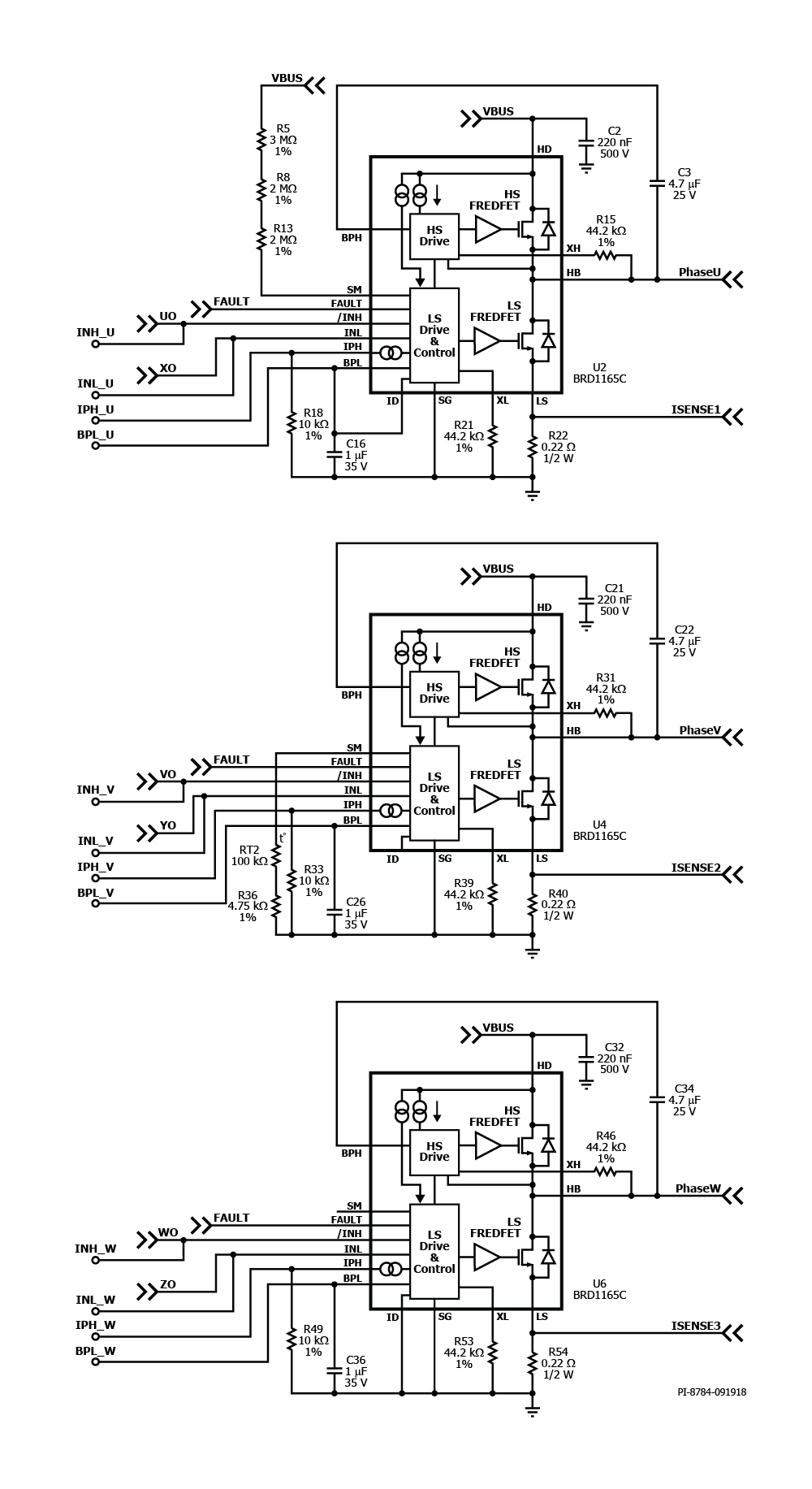

DER-653 - 300 W 3-Phase Inverter Using BridgeSwitch Motor Driver and LinkSwitch-TN2
300 W 3-phase inverter using BridgeSwitch Motor Driver IC (BRD1165C) and LinkSwitch-TN2 (LNK3204D) with Toshiba TMP375FSDMG vector engine microcontroller (VEMCU) in FOC operation (340 VDC input; 0.9 ARMS motor phase current; 5000 RPM for 4-pole brushless sensorless motors)
